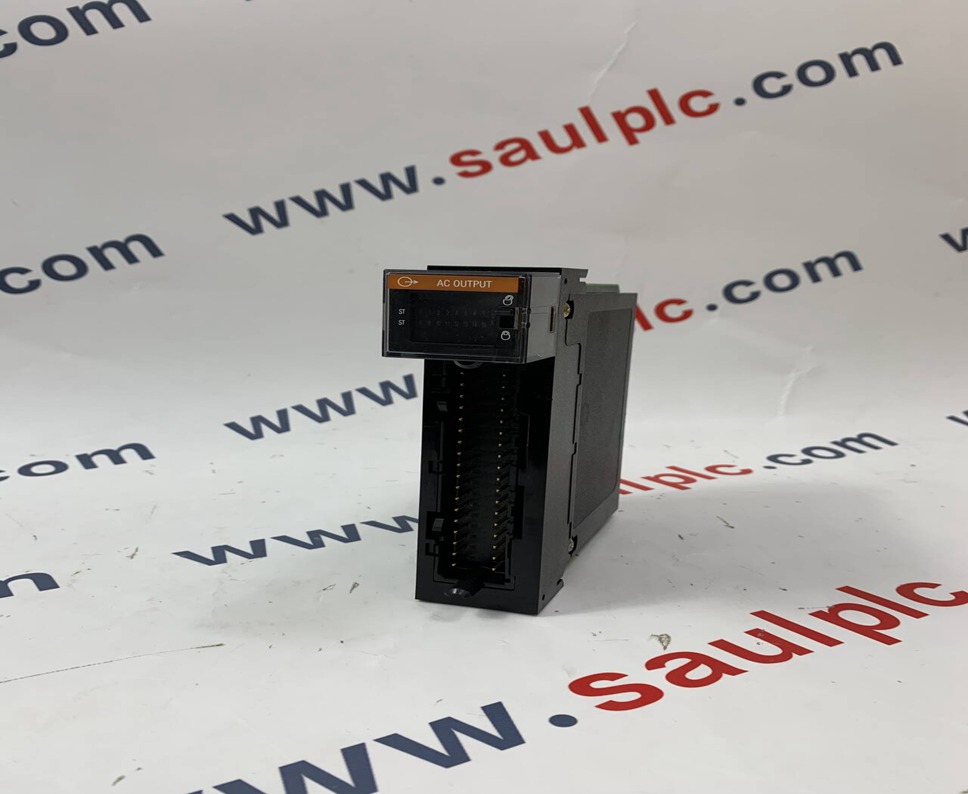

Allen-Bradley 1756-OA16I

Allen-Bradley 1756-OA16I

Product information：

Brand：ALLEN-BRADLEY                        Model number：1756-OA16I

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：0.44kg

HS: 8517623990

Product technial information：

The Allen-Bradley 1756-OA16I is a ControlLogix Digital AC Output Module designed for reliable and flexible control in various industrial automation applications. It's a key component within the ControlLogix system, which is a powerful and scalable platform for programmable automation controllers (PACs).

Product Details

The 1756-OA16I module provides 16 individually isolated AC output channels, meaning each output point operates independently, enhancing system reliability and fault isolation. It's specifically designed to switch AC loads, making it suitable for controlling devices such as motors, solenoids, and indicators that operate on alternating current.

Product Parameters

• Number of Outputs: 16 (individually isolated)

• Output Voltage Range: 74-265V AC, 47-63 Hz

• Backplane Current: 300mA @ 5.1V DC and 2.5mA @ 24V DC

• Max. Power Dissipation (Module): 5.5W @ 60°C

• Thermal Dissipation: 18.76 BTU/hr

• Output Current Rating: 1A per point (pilot duty rated)

• Isolation: 250V continuous between outputs

• Mounting: 1756 ControlLogix Chassis

• Operating Temperature: 0...60 °C (32...140 °F)

• Removable Terminal Block (RTB) Compatibility: Requires 1756-TBCH or 1756-TBS6H (sold separately)

• Output Delay Time (typical):

• Off to On: 9.3 ms @ 60 Hz

• On to Off: 11 ms @ 60 Hz

Product Advantages

• Individual Channel Isolation: This is a significant advantage, as it prevents faults on one output from affecting others, improving system robustness and troubleshooting.

• Wide Voltage Range: The module can handle a broad range of AC voltages (74-265V AC), providing flexibility for various applications.

• Robust Design: Built for industrial environments, it offers reliable performance in demanding conditions.

• ControlLogix Integration: Seamlessly integrates with the ControlLogix platform, leveraging its high-performance backplane and advanced control capabilities.

• Pilot Duty Rated: Indicates suitability for switching inductive loads like motor starters and contactors.
