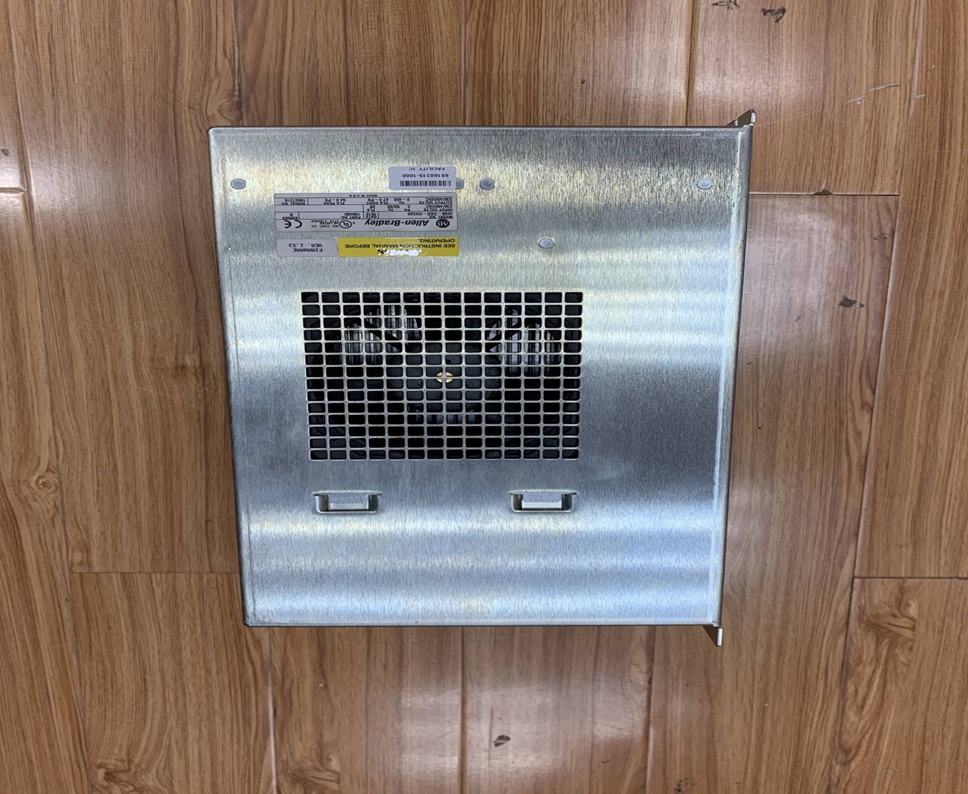

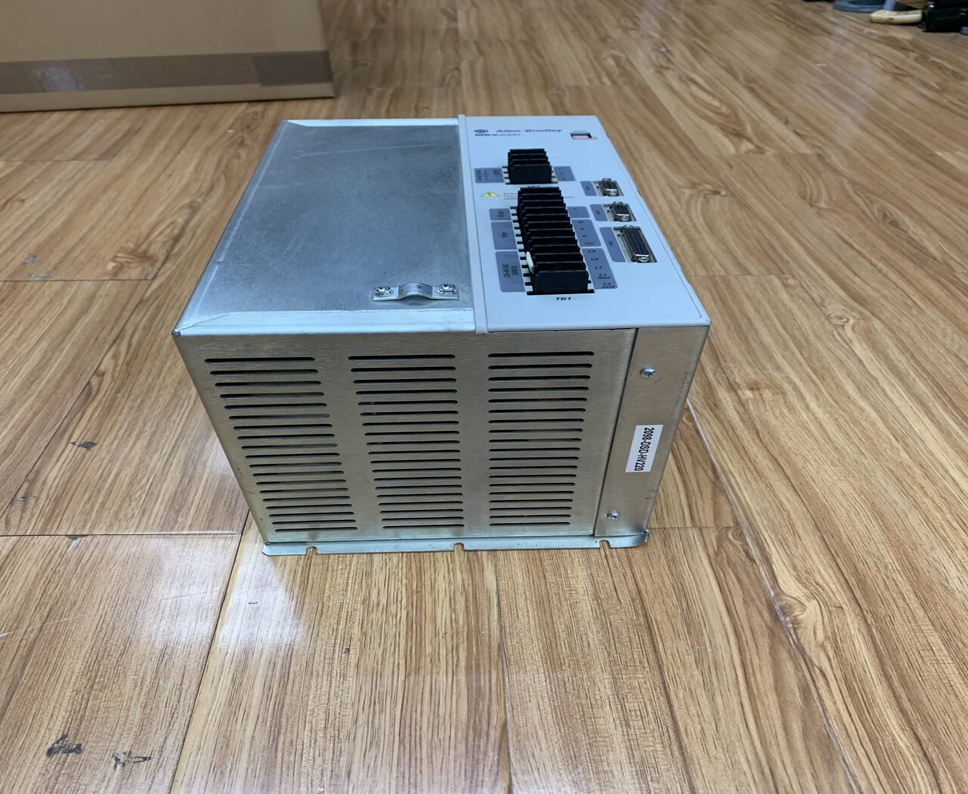

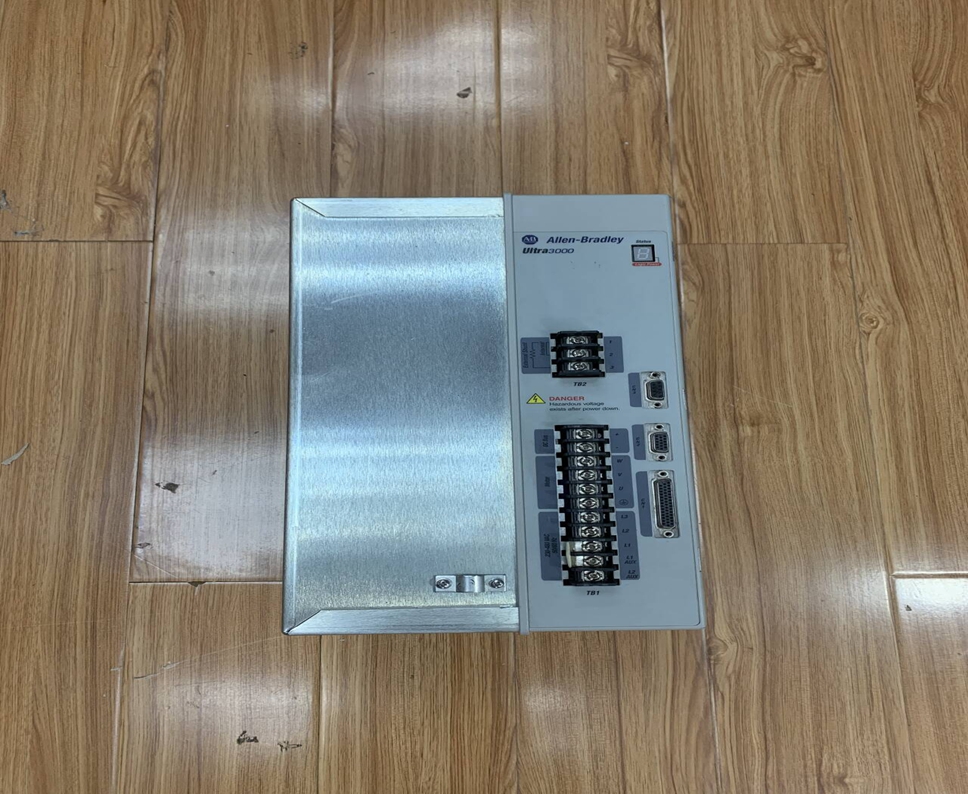

Allen-Bradley 2098-DSD-HV220

Allen-Bradley 2098-DSD-HV220

Product information：

Brand：ALLEN-BRADLEY                        Model number：2098-DSD-HV220

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: United States

Price: Please contact us                   Product weight：0.25kg

HS: 8517623990

Product technial information：

The Allen-Bradley 2098-DSD-HV220 (often seen as 2098-DSD-HV220-SE, with "SE" indicating SERCOS interface) is a digital servo drive from Rockwell Automation's Ultra 3000 series. It's designed for high-voltage applications and integrated motion control.

Here's a detailed breakdown:

Product Description

The 2098-DSD-HV220 is a high-performance digital servo drive that controls industrial motors, offering precise motion control. It's part of the Bulletin 2098 Ultra3000 Drive Systems, which are known for their flexibility and integration capabilities within Allen-Bradley machine control architectures. This specific model features a SERCOS interface for high-speed, deterministic communication, making it suitable for demanding, high-precision applications.

Product Parameters (Specifications)

• Series: Ultra 3000

• Input Voltage (AC): 230-480V AC RMS (Three Phase)

• Input Frequency (AC): 47-63 Hz

• Nominal Input Current (AC): 28 Amps RMS

• Continuous Output Power: 22 kW

• Continuous Output Current (0-peak): 47 Amps

• Intermittent (Peak) Output Current (0-peak): 94 Amps

• Bus Capacitance: 1880 µF

• Bus Overvoltage: 810 Volts DC

• Internal Shunt Resistance: 20 Ohms

• Auxiliary Power Supply: Yes (requires external 12-24V for digital I/O)

• Interface: SERCOS (commonly)

• Digital Inputs: 8 optically isolated, 12-24V, active high, current sinking

• Digital Outputs: 4 optically isolated, 12-24V, active high, current sourcing

• Relay Output: One normally open relay, 30V DC max, 1A max

• I/O Response: 100 µs

• Analog Inputs: COMMAND (14-bit A/D, ±10V), ILIMIT (10-bit A/D, 0 to 10V)

• Analog Output: ±10V, 8 bits, 2mA max

• Input Modes: A quad B, Step/Direction, CW/CCW

• Maximum Input Frequency: 2.5 MHz

• Dimensions: Approximately 9.54 x 15.43 x 8.0 inches (242.2 x 391.8 x 203.2 mm)

• Weight: Approximately 14.1 kg (31.0 lb)

• Operating Temperature: 0-55 °C (32-131 °F)

• Storage Temperature: -40-70 °C (-40-158 °F)

• Relative Humidity: 5-95% noncondensing

• Altitude: 1500 m (4921.5 ft) - derate 3% per 300 m (984.3 ft) above 1500 m

• Certifications: Complies with CE and UL safety standards.

Product Advantages

• High Performance: Designed for precise and demanding motion control applications, offering excellent control over industrial motors.

• Integrated Motion: Offers seamless integration with Allen-Bradley's Logix control platforms (e.g., ControlLogix, SoftLogix), simplifying system design, reducing costs, and easing maintenance.

• SERCOS Interface: Provides high-speed, deterministic communication for real-time control, crucial for synchronized motion and high-accuracy applications.

• Versatile Motor Compatibility: Can operate a wide variety of brushless servo motors, including Allen-Bradley MP-, F-, and Y-Series, 1326AB motors, as well as linear and third-party motors.
