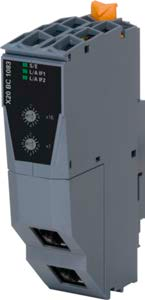

B&R X20BC1083

B&R X20BC1083  bus controller

Product information：

Brand：B&R                           Model number：X20BC1083

Lead Time：3-day working da        Country of origin: Austria

Price: Please contact us                   Product weight：0.5kg

HS: 8517623990

Product technial information：

The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate

the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.

POWERLINK is a standard protocol for Fast Ethernet with hard real-time characteristics. The POWERLINK

 Standardization Group (EPSG) ensures that the standard remains open and is continually developed.

The bus modules expanded to the left allow connection of up to 2 interface modules in addition to the bus controller.

• POWERLINK

• I/O configuration and firmware update via the fieldbus

• Integrated hub for efficient cabling

• Up to 2 slots for interface modules

Coated modules are X20 modules with a protective coating for the electronics component. This coating protects

X20c modules from condensation and corrosive gases.

The modules' electronics are fully compatible with the corresponding X20 modules.

For simplification purposes, only images and module IDs of uncoated modules are used in this data

sheet.

The coating has been certified according to the following standards:

• Condensation: BMW GS 95011-4, 2x 1 cycle

• Corrosive gas: EN 60068-2-60, Method 4, exposure 21 days

The following must be observed to operate netX modules with the bus controller without problems:

• A minimum revision ≥E0 is required for the bus controller.

• netX modules can only be operated with POWERLINK V2. V1 is not permitted.

• With SDO access to POWERLINK object 0x1011/1 on the bus controller, the netX firmware and the configuration

 stored on the bus controller are not reset. They can only be overwritten by accessing them again.

This affects objects 0x20C0 and 0x20C8, subindexes 92 to 95.
