EMERSON KJ1501X1-BC1 Product Details

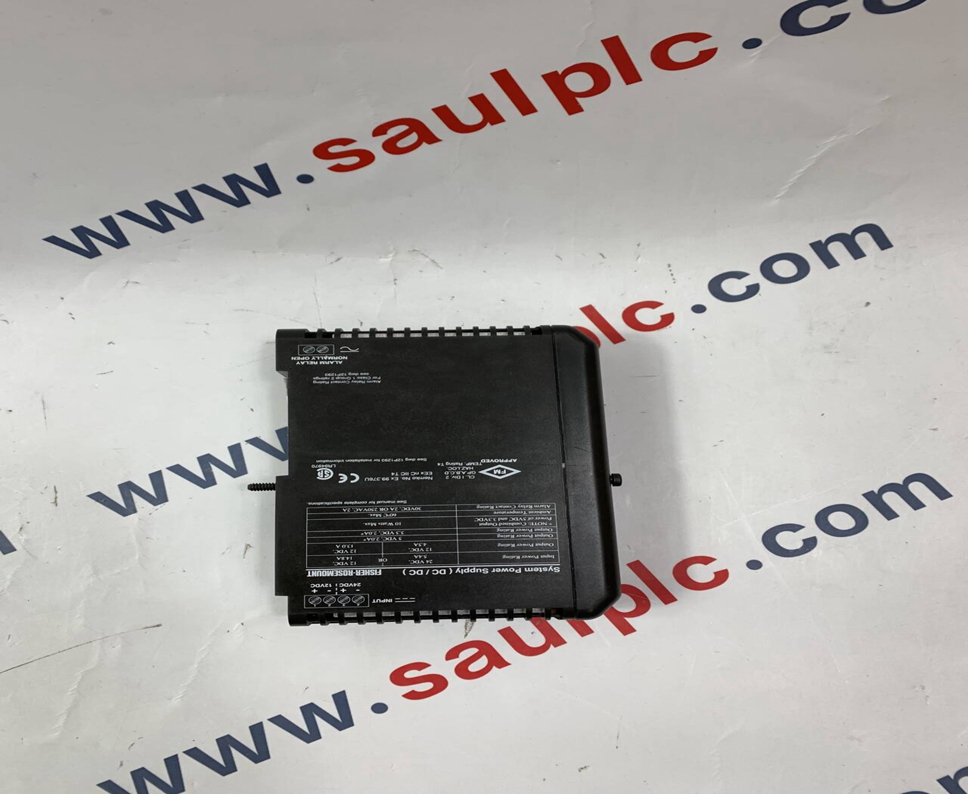

The EMERSON KJ1501X1-BC1 is a System Dual DC Power Supply (DC/DC) designed for use with Emerson's DeltaV distributed control systems (DCS). It provides reliable and regulated DC power to various components within the DeltaV system, ensuring stable and continuous operation of industrial automation processes. This power supply is engineered for easy integration and dependable performance in demanding industrial environments.

Product Parameters

Here are some key technical specifications for the EMERSON KJ1501X1-BC1:

• Model Number: KJ1501X1-BC1

• Alternate Part Number: 12P2186X032

• Product Type: DeltaV Power Supply (DC/DC)

• Input Voltage:

• 12 VDC: 11.4 VDC to 12.6 VDC

• 24 VDC: 22.8 VDC to 25.2 VDC

• Output Voltage and Current:

• +12 VDC: 13.0 A (at 12 VDC input)

• +12 VDC: 4.5 A (at 24 VDC input)

• +5.1 VDC: 2.0 A

• +3.4 VDC: 2.0 A

• Total Output Power: 10 W (at 60°C)

• Operating Temperature: -40°C to +70°C (some sources indicate 0°C to +60°C)

• Storage Temperature: -40°C to +70°C

• Shock Resistance: 10G, 1/2 sine wave for 11 milliseconds

• Vibration Resistance: 1 mm peak-to-peak from 5 Hz to 16 Hz; 0.5 g from 16 Hz to 150 Hz

• Relative Humidity: 5% to 95% non-condensing

• Weight: Approximately 0.47 kg to 0.7 kg (depending on the source)

• Dimensions: Varies slightly depending on the source, but approximately 4.4 cm (H) x 17.8 cm (L) x 11.4 cm (D) or 96mm x 86mm x 202mm.

• Protection Class: IP20 (as per one source for a similar model)

• Alarm Relay Contact Rating: 2 A at 30 VDC / 2 A at 250 VAC (as per one source for a similar model)

Product Advantages

The EMERSON KJ1501X1-BC1 offers several advantages for industrial control applications:

• Reliable Power Supply: Designed to provide stable and consistent DC power to critical components within the DeltaV system, ensuring uninterrupted operation.

• Dual DC Input Capability: Supports both 12 VDC and 24 VDC input, offering flexibility in power source options.

• Efficient Performance: Optimizes energy usage to ensure efficient operation of industrial processes.

• Compact Design: Its small form factor allows for installation in space-constrained environments.

• Robust Construction: Built with high-quality materials to withstand harsh industrial conditions, ensuring durability and longevity.

• Easy Integration: Designed for seamless integration with existing DeltaV systems, simplifying installation and maintenance.

• Redundancy: As a "Dual DC Power Supply," it likely supports or facilitates redundant power configurations for enhanced system availability (though specific redundancy features may vary).

• Safety Features: Meets stringent safety standards, providing peace of mind for operators and maintenance teams.

Precautions

• Ensure proper installation in a suitable control panel.

• Verify that the input voltage matches the specifications of the power supply.

• Do not exceed the specified current and power output ratings.

• Maintain the operating temperature within the specified range.

• Follow standard safety procedures when working with electrical equipment.

• Refer to the Emerson DeltaV system documentation for detailed installation and safety guidelines.

• Some sources indicate that this product may be discontinued by the manufacturer; verify availability and warranty terms with the supplier.
