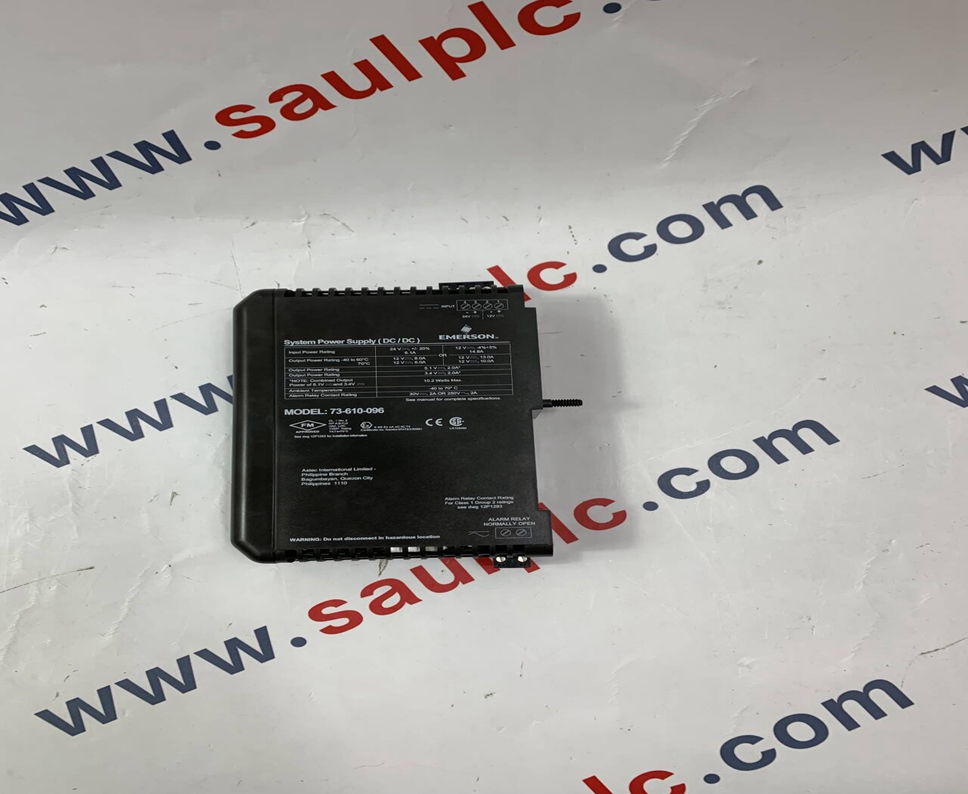

EMERSON KJ1501X1-BC3 Product Details

The EMERSON KJ1501X1-BC3 is a System Dual DC Power Supply module designed for use with the DeltaV Distributed Control System (DCS). It provides a reliable and stable power source for various components within the DeltaV system, particularly in demanding industrial environments and hazardous locations. This module plays a crucial role in ensuring continuous operation of critical control systems.

Product Parameters

Here are some key technical specifications for the EMERSON KJ1501X1-BC3:

• Model Number: KJ1501X1-BC3 (also referenced as VE5009)

• Type: System Dual DC Power Supply (DC/DC)

• Input Voltage:

• 12 VDC (Range: 11.5 to 12.6 VDC)

• 24 VDC (Range: 19.2 to 28.8 VDC)

• Output Voltage:

• 12 VDC (13 A max @ 60°C or 10 A max @ 70°C from 12 VDC input)

• 12 VDC (8 A max @ 60°C or 6 A max @ 70°C from 24 VDC input)

• 5.1 VDC at 2.0 A

• 3.4 VDC at 2.0 A

• Output Power: 10.2 W total at 70°C (combined outputs of 5.1 VDC and 3.4 VDC)

• Efficiency: 85% typical

• Operating Temperature: -40°C to +70°C

• Humidity: 5% to 95% non-condensing

• Shock: 10g 1/2 sinewave for 11 ms

• Vibration: 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz

• Airborne Contaminants: ISA-S71.04 –1985 Class G3



• Hazardous Location Certifications: ATEX and IECEx certified for use in Class I, Division 2, Groups A, B, C, D, E, F, and G hazardous locations. II 3G Ex nA nC IIC Gc.



• Weight: Approximately 0.47 kg - 0.7 kg (depending on the source)

• Dimensions: Compact design, specific dimensions may vary slightly depending on the source, but generally around 4.4 cm (H) x 17.8 cm (L) x 11.4 cm (D).

Product Advantages

The EMERSON KJ1501X1-BC3 power supply offers several key advantages:

• Reliable Performance: Designed to provide stable and consistent power to critical control system components, ensuring smooth and uninterrupted operation.

• Redundant Power Supply: Being a "Dual DC" power supply suggests a level of redundancy, enhancing system availability.

• Hazardous Location Certified: ATEX and IECEx certifications allow for deployment in potentially explosive environments, adhering to stringent safety standards.

• Wide Operating Temperature Range: The -40°C to +70°C operating temperature range makes it suitable for extreme industrial conditions.

• Compact Design: Its small form factor allows for easy integration into existing DeltaV systems where space might be limited.

• High Efficiency: The 85% typical efficiency minimizes power loss and optimizes energy usage, contributing to lower operational costs.

• Versatile Input Voltage: Supports both 12 VDC and 24 VDC input, providing flexibility in power source options.

• Robust Construction: Built with quality materials to withstand harsh industrial environments, ensuring durability and longevity.

Precautions

• Ensure proper installation in a suitable control panel.

• Verify that the input voltage matches the specifications of the power supply.

• Do not exceed the specified current and power output ratings.

• Maintain the operating temperature within the specified range.

• Follow standard safety procedures when working with electrical equipment.

• Refer to the Emerson DeltaV system documentation for detailed installation and safety guidelines.

• Some sources indicate that this product may be discontinued by the manufacturer; verify availability and warranty terms with the supplier.
