HONEYWELL CC-PAIH01

HONEYWELL CC-PAIH01

Product information：

Brand：Honeywell                      Model number：CC-PAIH01

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: Britain

Price: Please contact us                   Product weight：0.4kg

HS: 8517623990

Product technial information：

HONEYWELL CC-PAIH01 Product Details

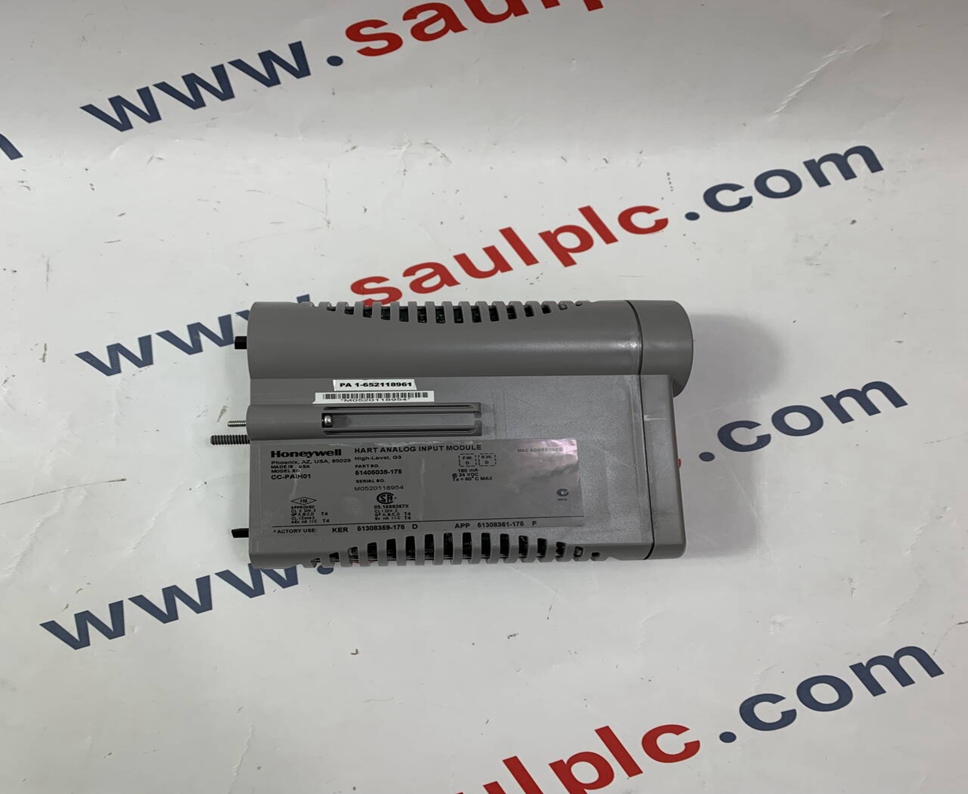

The Honeywell CC-PAIH01 is a High-Level HART Analog Input Module designed for accurate and reliable analog signal processing in industrial applications. It is a key component of Honeywell's control systems, including Experion® PKS and C300 series, providing a vital link between field instrumentation and the control system. This module supports HART communication, enabling access to diagnostic information and configuration parameters from smart field devices. Built to withstand harsh industrial environments, the CC-PAIH01 ensures long-term durability and operational stability.

Product Parameters

• Model Number: CC-PAIH01 (Part Number: 51405038-175)

• Input Range: 4 to 20 mA or 0 to 10 VDC (configurable)

• Resolution: 1 mA or 10 mV

• Accuracy: ±0.25% of full scale (typically), some sources state ±0.1%

• Repeatability: ±0.05% of full scale

• Sampling Rate: 100 Hz (typical)

• Communication Protocol: HART 7 (Point-to-Point & Multidrop)

• Number of Channels: 16

• Isolation: 1500 VAC (channel-to-channel)

• Power Supply: 24 VDC (from system backplane)

• Operating Temperature: -40°C to +70°C

• Dimensions: 95 mm x 368 mm x 133 mm

• Weight: 0.5 kg (approximately 300g according to one source)

• Environmental Rating: NEMA 4X/IP66

• Compatibility: Honeywell Experion PKS, C300 Controller

Product Advantages

• High Accuracy and Reliability: Ensures precise analog signal acquisition, crucial for effective process monitoring and control.

• HART Communication Support: Enables simultaneous analog signal (4-20mA) and HART digital communication for smart field devices, allowing for device configuration, diagnostics, and access to secondary and tertiary variables. Supports HART 7 protocol and multidrop mode (up to 15 devices per channel).

• Versatile Input Range: Accepts both current (4-20mA) and voltage (0-10 VDC) inputs, making it suitable for a wide range of sensors and transmitters.

• Extensive Self-Diagnostics: Detects faults to ensure reliable operation and assists in identifying wiring issues through open wire detection.

• Optional Redundancy: Provides increased system reliability through compatibility with redundant configurations.

• Open Wire Detection: Helps in identifying and troubleshooting wiring problems.

• Non-Incendive Field Power: Safe for use in hazardous environments.

• Fast Loop Scan: Enables quick data collection and processing.
