AutomationDirect C0-08TD1

AutomationDirect C0-08TD1 Product Details

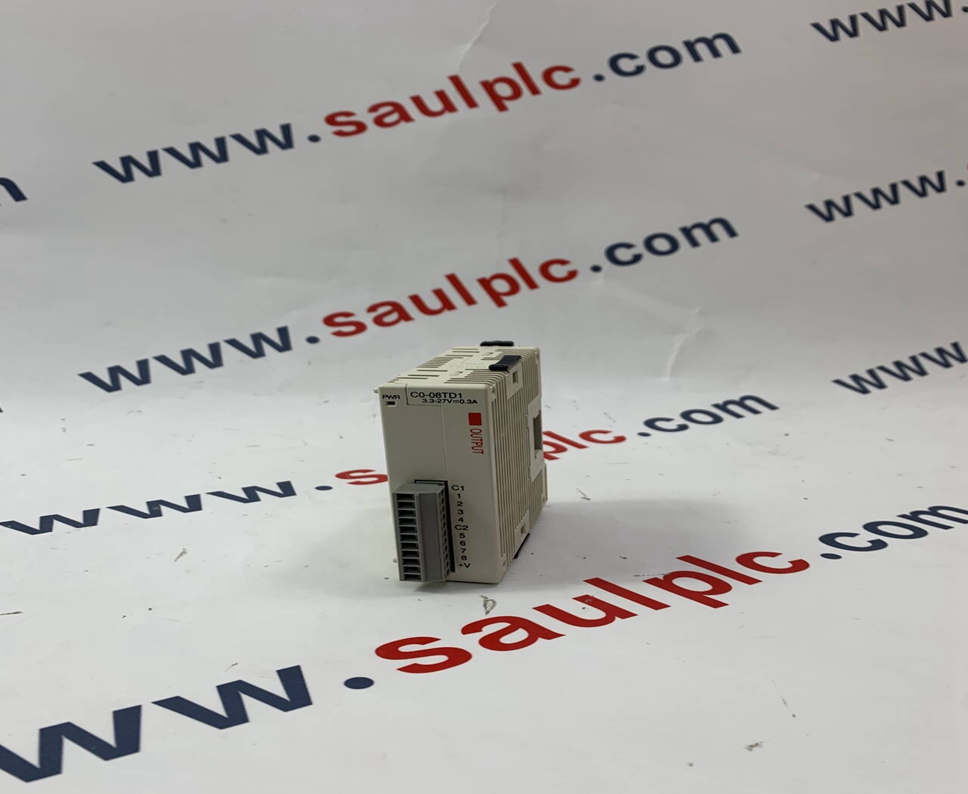

The AutomationDirect C0-08TD1 is a discrete output module designed for use with the CLICK and CLICK PLUS series of Programmable Logic Controllers (PLCs). It provides 8 sinking DC output points with an operating voltage range of 3.3-27 VDC and a maximum output current of 0.3A per point. The module features two isolated commons, with 4 output points per common, enhancing flexibility in wiring different output devices. A removable terminal block is included for easy wiring and maintenance.

Product Parameters

• Number of Output Points: 8 (Sinking)

• Operating Voltage Range: 3.3-27 VDC

• Maximum Output Current: 0.3A per point

• Number of Commons: 2 isolated commons

• Points per Common: 4

• Output Type: Discrete (Sinking)

• On Voltage Drop: 1.5 VDC @ 0.3 A

• OFF to ON Response: < 0.5 ms

• ON to OFF Response: < 1.0 ms

• Status Indicators: Logic Side (8 red LEDs), Power Indicator (green LED)

• External DC Power Required: 21.6–26.4 VDC, Max. 15mA (All Outputs ON)

• Bus Power Required (24VDC): Max. 50mA (All Outputs On)

• Terminal Block: ¹ Removable, 11-position (replacement part number C0-8TB)


  1. CLICK Stackable I/O Module Specifications - AutomationDirect

  cdn.automationdirect.com

• Weight: 0.26 lb (118 g)

• Agency Approvals: UL508, UL61010-2-201

Product Advantages

• Cost-Effective: Provides a reliable and affordable solution for discrete output control.

• High Output Capacity: Each point can handle up to 0.3A, suitable for driving various actuators and indicators.

• Flexible Wiring: Two isolated commons allow for control of devices with different power supply requirements.

• Easy Installation and Maintenance: The removable terminal block simplifies wiring and module replacement.

• Visual Status Indication: LEDs for each output point and power provide quick diagnostics.

• Compatibility: Designed for seamless integration with AutomationDirect's CLICK and CLICK PLUS PLC series.

• Compact Design: Space-saving module for applications with limited panel space.
