BENDER IR125Y-4

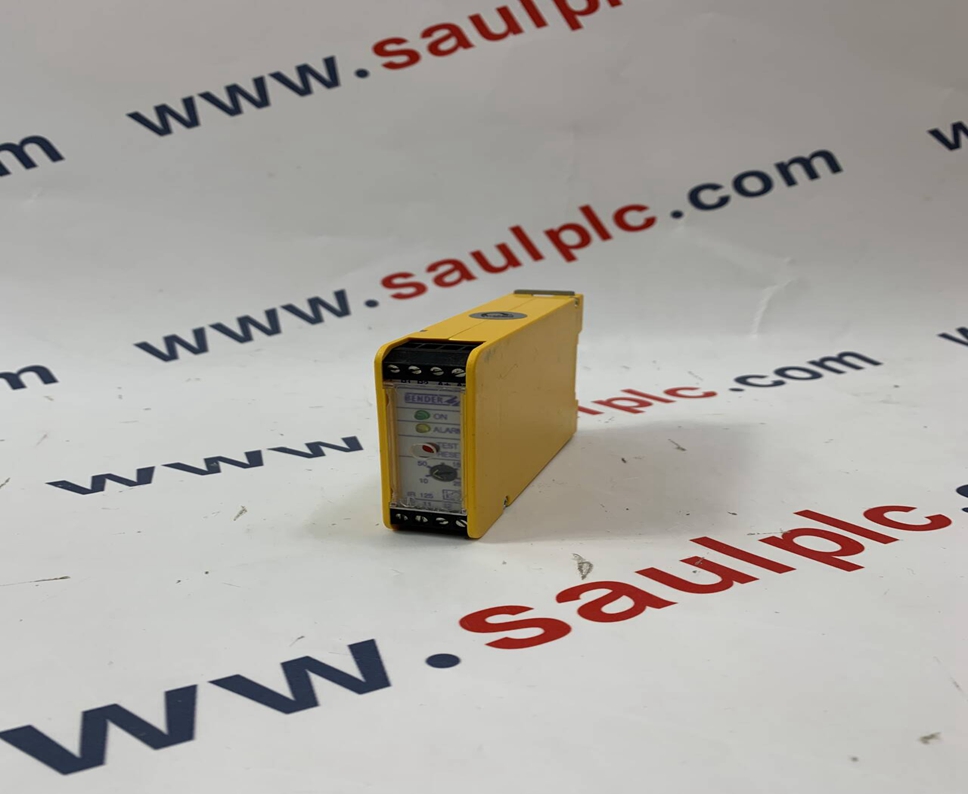

BENDER IR125Y-4 Product Details

The BENDER IR125Y-4 is an insulation monitoring device (IMD) designed to monitor the insulation resistance of unearthed AC and DC systems (IT systems). Unlike devices that evaluate voltage asymmetry, the IR125Y-4 utilizes the active AMP measuring principle, enabling the detection of both symmetrical and asymmetrical insulation faults. The device does not require an external power supply as it draws power from the monitored system itself.

Product Parameters

• Nominal System Voltage (Un):

• AC: 19.2...265 V

• DC: 19.2...308 V (protected against polarity reversal)

• Nominal Frequency (fn): DC, 42...460 Hz

• Rated Voltage (AC): 250 V

• Rated Impulse Voltage / Pollution Degree: 4 kV / 3

• Response Value (Ran): Adjustable 10...200 kΩ

• Measuring Voltage (Um): 13 V

• Measuring Current (Im max. at RF = 0 Ω): ≤ 120 μA

• Internal DC Resistance (Ri): 112 kΩ

• Permissible System Leakage Capacitance (Ce): ≤ 10 μF

• Alarm Relay: 1 potential-free changeover contact

• Rated Contact Voltage: AC 250 V / DC 300 V

• Making Capacity: AC/DC 5 A

• Breaking Capacity: 2 A, AC 230 V, cos φ = 0.4; 0.2 A, DC 220 V, L/R = 0.04 s



• Power Consumption: ≤ 3 VA

• Response Time (tan at RF = 0.5 x Ran and Ce = 1 μF): ≤ 6 s

• Relative Uncertainty (according to IEC 61557-8): +30/-0 %, at least ±1.5 kΩ

• Vibration Resistance (IEC 60068-2-6):

• During operation: 1 g / 10...150 Hz

• During transport: 2 g / 10...150 Hz

• Shock Resistance (IEC 60068-2-27, during operation): 15 g / 11 ms

• Bumping (IEC 60068-2-29, during transport): 40 g / 6 ms

• Ambient Temperature:

• During operation: -10...+55 °C

• During storage: -40...+70 °C

• Connection Properties (rigid/flexible): 0.2...4 / 0.2...2.5 mm²

• Connection (flexible with ferrule, without/with plastic sleeve): 0.25...2.5 mm²

• Conductor Sizes (AWG): 24...12

• Tightening Torque: 0.5...0.6 Nm

• Degree of Protection (IEC 60529):

• Internal components: IP30

• Terminals: IP20

• Flammability Class: UL94 V-0

• Weight: Approx. 130 g

• Mounting: Any position, DIN rail mounting (IEC 60715) or screw fixing with mounting plate
