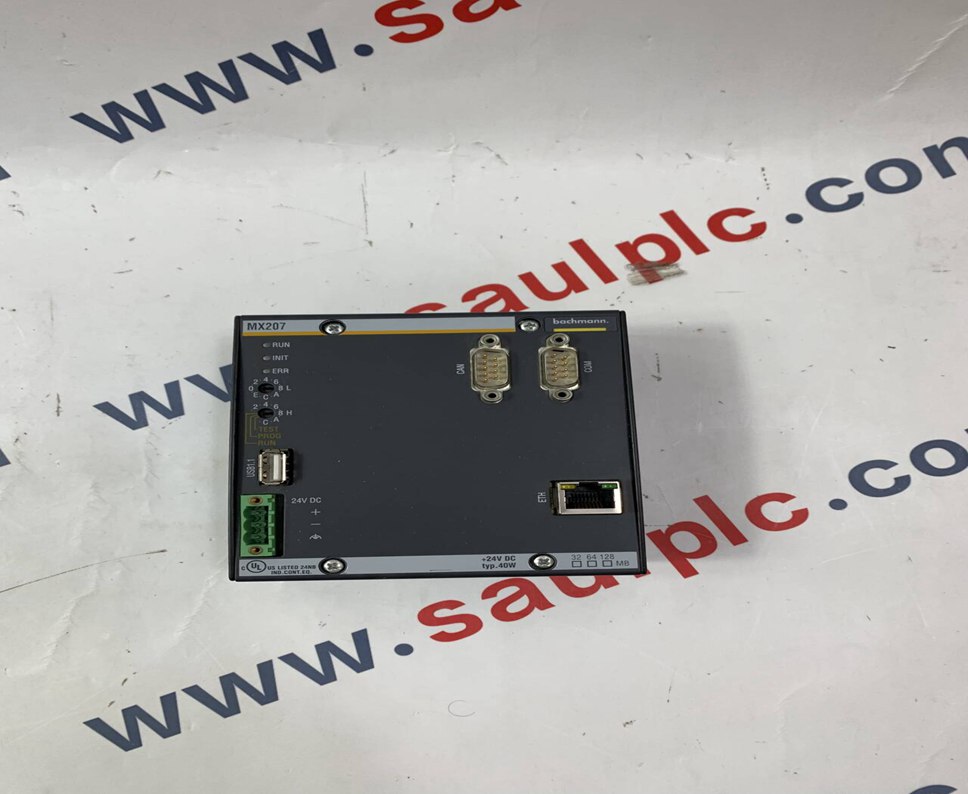

Bachmann MX207

The Bachmann MX207 is a CPU module from Bachmann electronic GmbH, designed for industrial automation and control systems, specifically within their M1 system. It's part of the compact MX200 series, known for its robust design and integrated features.

Product Details

The MX207 is a processor module based on x86 PC technology. It's built for demanding industrial environments and offers an optimized configuration to balance cost and quality. It features an integrated power supply unit that can also provide power to I/O modules, and it includes integrated communication interfaces.

Product Parameters (Specifications)

• Manufacturer Item Number: 00031492-00 (New revision from August 1st, 2019; old item no.: 00014445-00)

• CPU: SingleCore, 266MHz (LX700)

• DRAM (Working Memory): 256 MB

• nvRAM (Remanent/Non-volatile Data Memory): 512 kB (for maximum data security without battery backup)

• File-Flash (Internal Storage): 64 MB

• Ethernet: 1x Eth100 (10/100 Mbit/s)

• CAN/CANopen: 1x interface (10 k to 1 Mbit/s)

• Serial Interfaces: 1x RS232/422/485

• USB: 1x USB 2.0

• I/O Power Supply: 18W

• Operating System: VxWorks with Bachmann system extensions on internal FLASH.

• Supply Voltage: 24 V DC (18 V to 34 V)

• Operating Temperature: -30 to +60 °C (fanless)

• Storage Temperature: -40 to +85 °C

• Relative Air Humidity (Operation/Storage): 5 to 95 % without condensation / 5 to 95% with condensation

• Features:

• Real-time multi-tasking for parallel program execution.

• Status indicating LEDs for RUN, INIT, and ERROR.

• Battery-backed Real-Time Clock (RTC) for time/date, with sync capability over IEEE 1588, SNTP.

• Watchdog functionality.

• Galvanic isolation for supply.

• Reverse polarity protection.

Product Advantages

• Robustness: Designed for extreme operating conditions (-30 to +60 °C fanless) due to generous thermal design and special coating processes. This makes it suitable for harsh industrial environments.

• Compact Design: Integrated power supply and communication interfaces allow for the implementation of complex basic systems using only a minimal number of modules.

• Cost-Efficiency: The optimized configuration aims to reduce costs without compromising quality, making it a cost-effective solution for small to medium-sized applications.

• Real-time Performance: Industrial processors and the VxWorks operating system ensure deterministic real-time behavior, crucial for control applications.

• Flexible Communication: Offers various on-board interfaces (Ethernet, CAN, serial, USB) to meet diverse networking and data exchange requirements without needing additional costly modules.

• Data Security: Features 512 kB of non-volatile RAM (nvRAM) to provide maximum data security for over 10 years without requiring battery backup.

• Scalability: Applications can be easily transferred to more powerful CPU models within the MX200 series if higher CPU performance is required in the future, thanks to a standard programming model.

• Versatility: Can function as a PLC, motion controller, or a communication and data center due to the comprehensive Bachmann electronic software.
