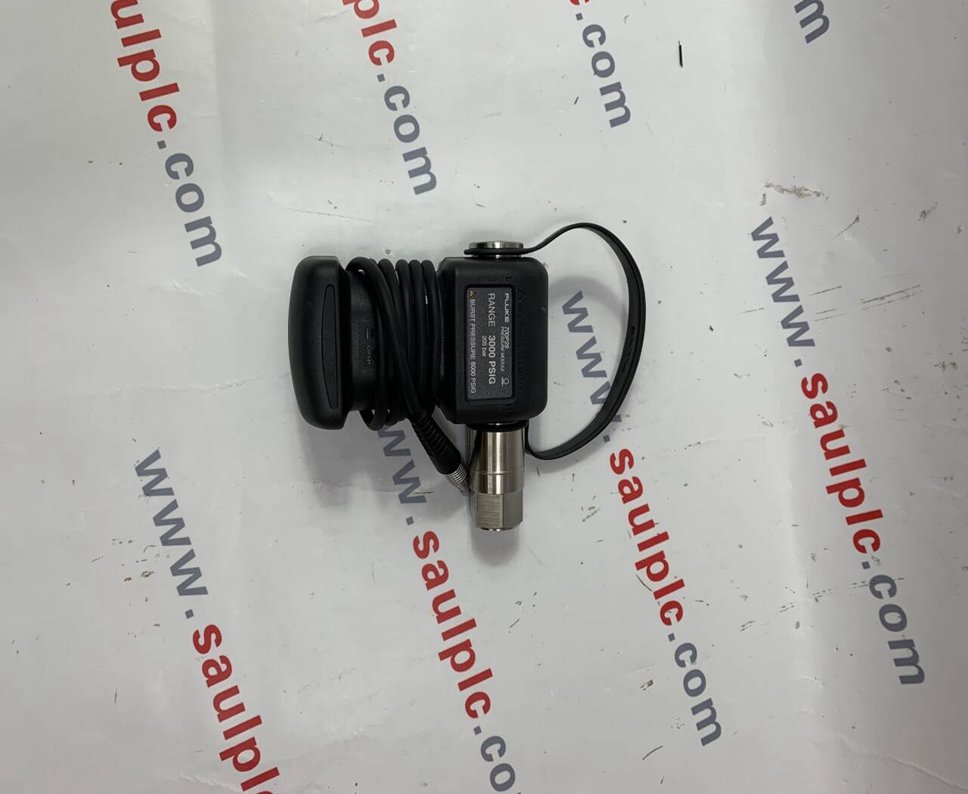

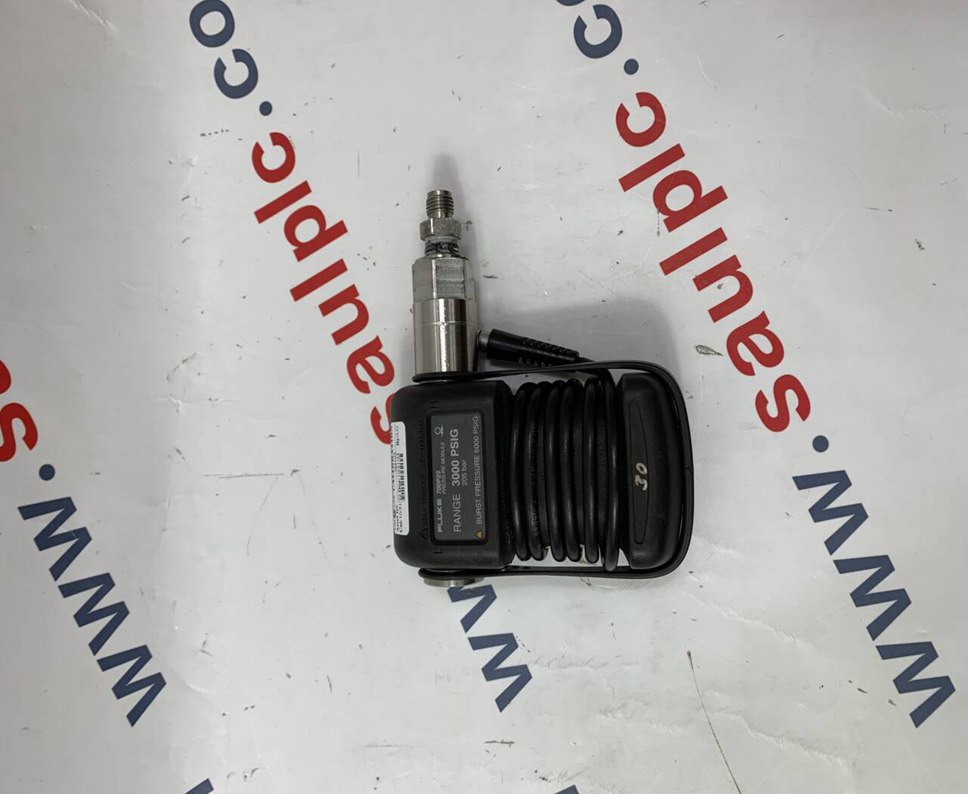

FLUKE 700P29

The Fluke 700P29 is a Gauge Pressure Module designed to work seamlessly with Fluke 700 Series Process Calibrators. It's built for measuring high pressures in various industrial settings.

Product Detailed Description

The Fluke 700P29 is a robust and accurate gauge pressure module that enables users to measure pressure with respect to atmospheric pressure. It connects to and receives power from Fluke 700 Series Process Calibrators, displaying pressure readings in up to 10 different user-specified units.

Key features include:

• Internal Microprocessor: Processes pressure measurements and communicates digitally with the calibrator.

• Temperature Compensation: Features internal temperature compensation from 0°C to 50°C (32°F to 122°F) to ensure full-accuracy performance across a wide range of operating temperatures.

• Rugged Construction: Encased in a urethane molded case, it's designed to withstand rough handling and harsh industrial environments.

• NIST-traceable Calibration Certificate: Each module comes with a certificate, assuring its accuracy and traceability to national standards.

• Local Calibration Capability: Can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source.

• Pressure Fitting: Comes with one pressure fitting, typically 1/4" NPT.

Product Parameters

• Pressure Range: 0 to 3000 psi (0 to 20.7 MPa / 0 to 207 bar)

• Resolution: 0.1 psi / 0.001 MPa

• Reference Uncertainty (23 ± 3°C): 0.050% of full span

• Total Uncertainty (1 year, 0°C to 50°C): 0.080% of full span

• High Side Media Compatibility: Hastelloy C276 (indicates compatibility with dry air or non-corrosive gases)

• Low Side Media Compatibility: Not applicable (gauge pressure)

• Maximum Non-Destructive Pressure: 2x maximum rated pressure

• Compensated Temperature Range: 0°C to 50°C (full accuracy), with reduced accuracy specifications for -10°C to 0°C.

• Pressure Units: Displays readings in various units including psi, kPa, bar, in. Hg, mm Hg, in. H2O (@4°C), ft. H2O (@4°C), kg/cm2, in. H2O (@60°F), mm H2O (@4°C).

• Certifications: Conforms to European Standard EN61010-1, EN61326. Certified by CSA: I.S. Class I, Div 1, Groups A-D T4, Ta = 0°C to 50°C. ATEX II 1G EEx ia IIC T4 Compliant (for intrinsically safe versions like 700P29Ex).

• Warranty: Typically one year.

Product Advantages

• High Accuracy: Provides precise pressure measurements, crucial for demanding calibration tasks.

• Wide Temperature Compensation: Maintains high accuracy over a broad temperature range, unlike many other pressure calibrators.

• Durability: The rugged design and urethane molded case ensure longevity and resistance to harsh industrial environments.

• Versatile Unit Display: Allows users to select from 10 different pressure units, providing flexibility for various applications.

• Easy Integration: Seamlessly integrates with Fluke 700 Series Process Calibrators, extending their functionality.

• NIST Traceability: Comes with a NIST-traceable calibration certificate, offering confidence in measurement reliability.

• Field Calibratable: Can be calibrated in the field, reducing downtime and maintenance costs.
