PLEORA PT1000-LV644-V2-E-V440

PLEORA PT1000-LV644-V2-E-V440 Product Details

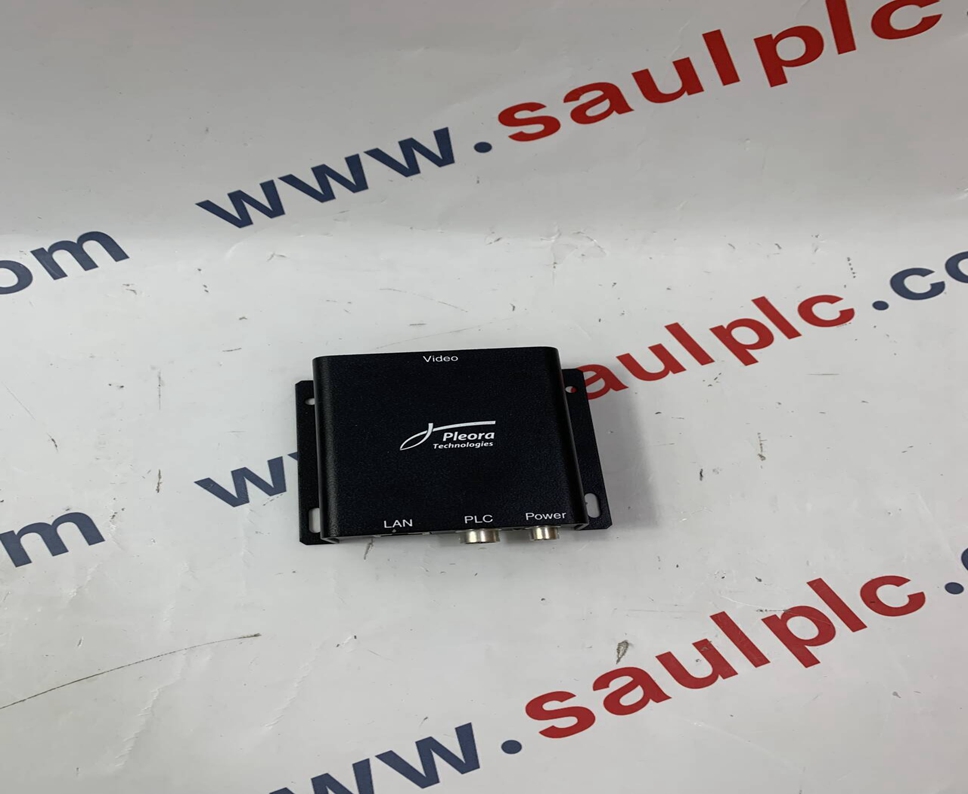

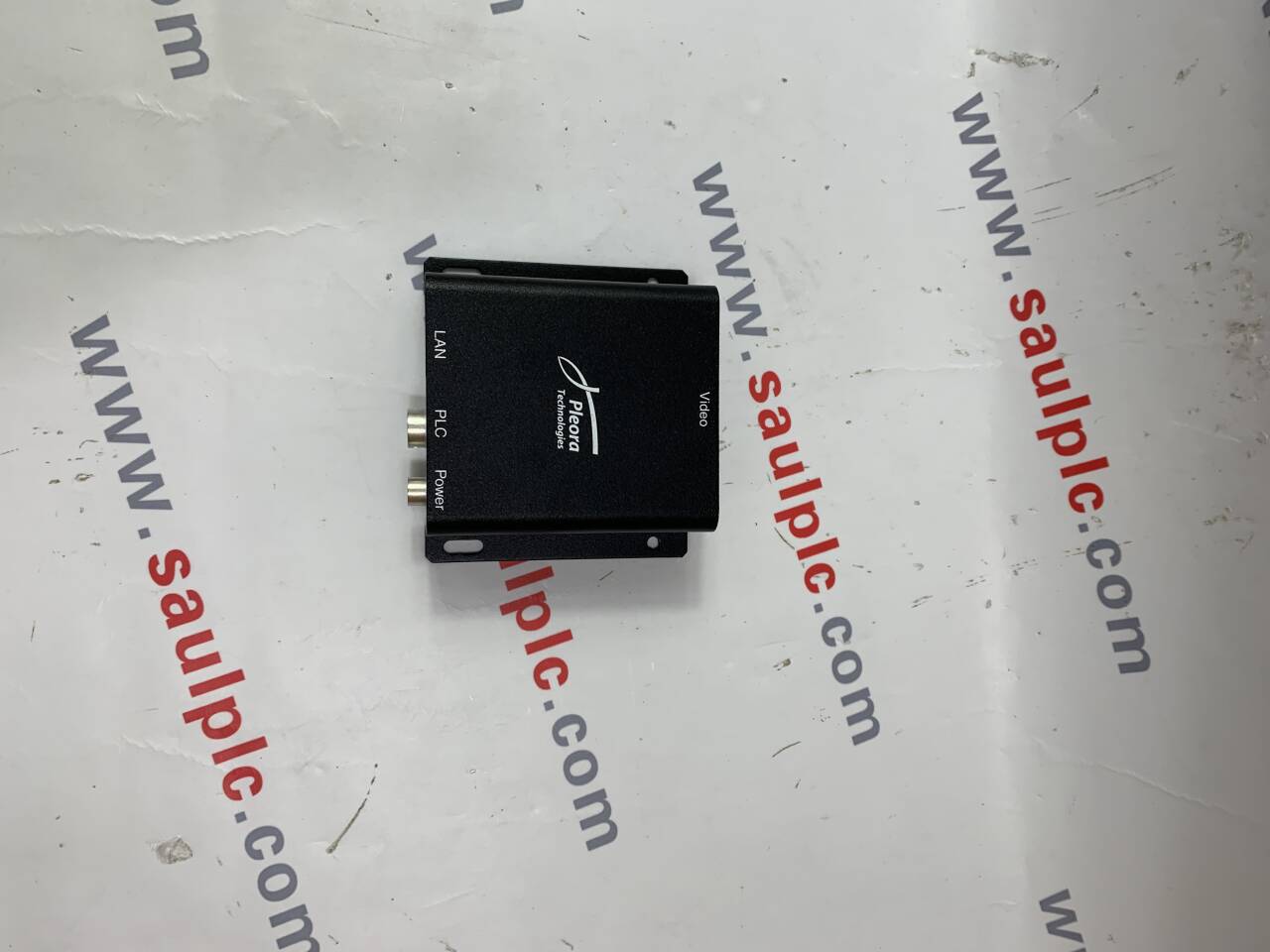

The PLEORA PT1000-LV644-V2-E-V440 is an external frame grabber designed to convert video data from LVDS (Low-Voltage Differential Signaling) cameras to Gigabit Ethernet (GigE) for transmission to a host computer. This allows LVDS cameras to be treated as native GigE Vision® cameras, extending their reach and enabling integration into networked vision systems.

This specific model likely refers to a particular configuration or revision within the PT1000-LV family. The "LV644" indicates compatibility with LVDS cameras adhering to the TIA/EIA 644 standard. The "V2" and "V440" likely denote specific hardware revisions or manufacturing details. The "E" usually signifies an enclosed unit rather than an OEM board.

Product Parameters (General for PT1000-LV Family)

Please note that specific parameters for the exact PT1000-LV644-V2-E-V440 model might vary. Consult the official datasheet for precise specifications. General parameters for the PT1000-LV family include:

• Video Input: LVDS (TIA/EIA 644 compliant)

• Data Rate: Supports the data rate of the connected LVDS camera.

• Output Interface: Gigabit Ethernet (1000BASE-T)

• GigE Vision Compliance: Fully compliant with GigE Vision® standard (version may vary).

• GenICam Compliance: Compliant with GenICam™ standard.

• Maximum Cable Length: Up to 100 meters over standard CAT5e/6 cabling. Longer distances possible with Ethernet switches or fiber optics.

• Power Supply: Typically 4.5V to 16V DC. Connector type may vary (e.g., Hirose 6-pin).

• Power Consumption: Typically around 2.5W to 3.1W.

• Operating Temperature: Enclosed unit: 0°C to 45°C (typically). OEM board: 0°C to 70°C (typically).

• Connectors:

• Video Input: Hirose 68-pin female MDR (DX10GM-68SE)

• Network: RJ45

• Power: Hirose 6-pin (HR10A-7R-6P) for enclosed unit; Molex 4-pin 6373 series for OEM board.

• I/O and Serial Control: Hirose 12-pin (HR10A-10R-12S) for enclosed unit; Sametec 16-pin 2 mm male header for OEM board.

• I/O:

• 2 TTL Inputs

• 1 LVDS Input

• 1 Optically Isolated Input

• 2 TTL Outputs

• 1 Optically Isolated Output

• Serial Communication: 2 RS-232 serial links.

• Size: Enclosed unit: Approximately 95 mm x 97 mm x 37 mm. OEM board: Approximately 89 mm x 72 mm x 21 mm.

• Memory: Some models include onboard SDRAM (e.g., 16 MB).

Product Advantages

• Enables Long-Distance Transmission: Leverages the long reach of Gigabit Ethernet (up to 100m) compared to the typically shorter distances of LVDS.

• Networked Environment Integration: Allows LVDS cameras to seamlessly integrate with native GigE Vision cameras in networked systems.

• Standard Compliance: Full compliance with GigE Vision and GenICam standards ensures interoperability with a wide range of third-party software and hardware.

• Low and Predictable Latency: Designed for real-time applications with minimal and consistent delay in video transmission.

• Built-in PLC (Programmable Logic Controller): Offers advanced real-time synchronization and triggering capabilities for precise control of the vision system.

• External Device Control: Provides RS-232 and GPIO interfaces for controlling external accessories and synchronizing with other system elements.

• Reduced System Cost and Complexity: Eliminates the need for specialized frame grabber cards in the host PC, allowing for the use of standard Ethernet ports on various computing platforms (laptops, embedded PCs, etc.).

• Feature-Rich SDK: Bundled with Pleora's eBUS™ SDK, providing comprehensive tools and libraries for application development.

• Flexible Triggering: Supports various triggering modes, including free-running and external triggering, with flexible configurations and debouncers.

• Synchronization Capabilities: Enables synchronization of multiple cameras and system components for coordinated operation.

• Multicast Capability: Supports multicast for distributing video to multiple destinations simultaneously.
