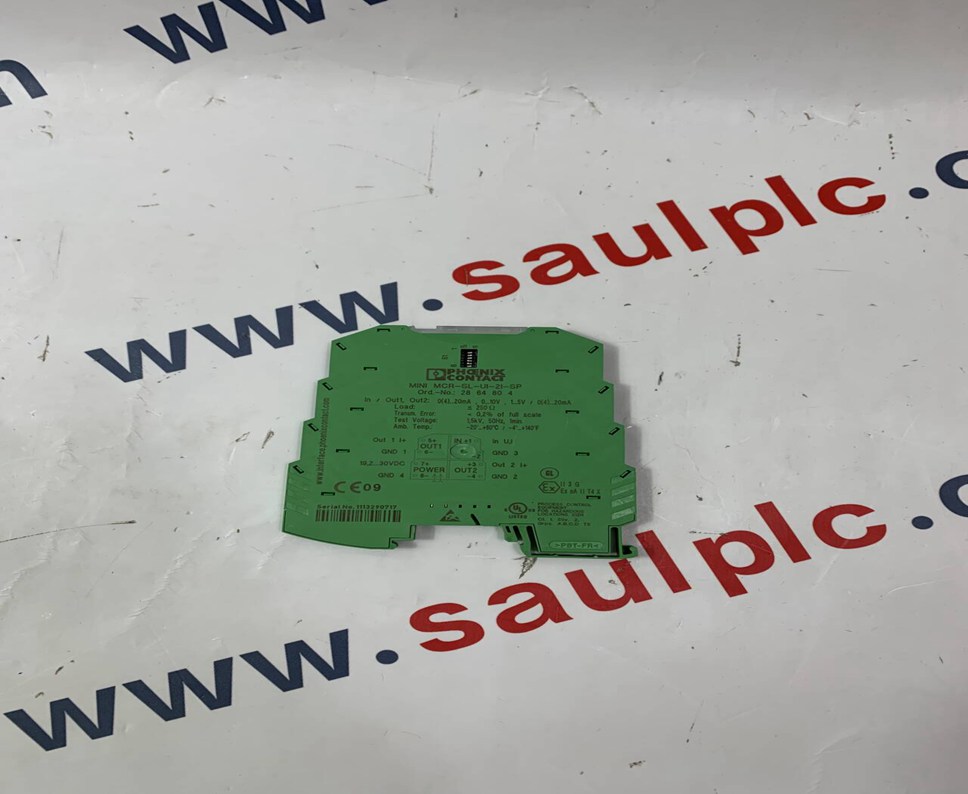

Phoenix MINI MCR-SL-U1-21-SP

The Phoenix MINI MCR-SL-U1-21-SP is a highly compact, 6.2 mm wide, 3-way isolating amplifier designed for the electrical isolation, conversion, amplification, and filtering of standard analog signals. It's part of Phoenix Contact's MINI Analog series, known for its space-saving design and reliable performance in industrial applications.

Here's a detailed breakdown:

Product Description

The MINI MCR-SL-U1-21-SP is a versatile signal conditioner. It typically accepts a 0-10 V or 1-5 V voltage input and provides two isolated current outputs, usually 0-20 mA or 4-20 mA. It features 3-way isolation (between input, output, and supply), ensuring robust protection against interference and ground loops. The device is configurable via DIP switches located on the side of the housing, allowing users to select input and output signal ranges, as well as other parameters like filter types and error behavior.

Product Parameters (Typical)

Please note that specific parameters might vary slightly depending on the exact variant and configuration.

• Input:

• Voltage Input Signal: 0-10 V, 1-5 V (configurable)

• Max. Input Voltage: 30 V

• Input Resistance of Voltage Input: Approx. 100 kΩ

• Output:

• Number of Outputs: 2

• Current Output Signal: 2x 0-20 mA, 2x 4-20 mA (configurable)

• Max. Output Current: Approx. 22 mA

• Load/Output Load Current Output: $\le 250\Omega$ (at 20 mA)

• Ripple: $<20m{V}_{PP}$ (at 250 Ω)

• Supply:

• Nominal Supply Voltage: 24 V DC

• Supply Voltage Range: 19.2 V DC to 30 V DC

• Max. Current Consumption: $<30mA$ (at 24 V DC including load)

• Power Consumption: $<600mW$

• Power can be supplied via terminal blocks or a DIN rail connector (TBUS).

• General Data:

• Dimensions (W x H x D): 6.2 mm x 93.1 mm x 102.5 mm

• Ambient Temperature (Operation): -20°C to +60°C (some variants up to +65°C)

• Ambient Temperature (Storage/Transport): -40°C to +85°C

• Degree of Protection: IP20

• Electrical Isolation: 3-way isolation (Basic insulation in accordance with EN 61010)

• Test Voltage (Input/Output/Supply): 1.5 kV AC (50 Hz, 60 s)

• Maximum Transmission Error: $\le 0.2\%$ (of final value)

• Maximum Temperature Coefficient: $<0.01\%/K$

• Limit Frequency (3 dB): Approx. 35 Hz (some variants 100 Hz)

• Protective Circuit: Transient protection

• Connection Method: Spring-cage connection (or screw connection on some models)

• Conductor Cross Section: 0.2 - 2.5 mm² (AWG 24-12)

• Stripping Length: 8 mm (spring-cage) or 12 mm (screw)
