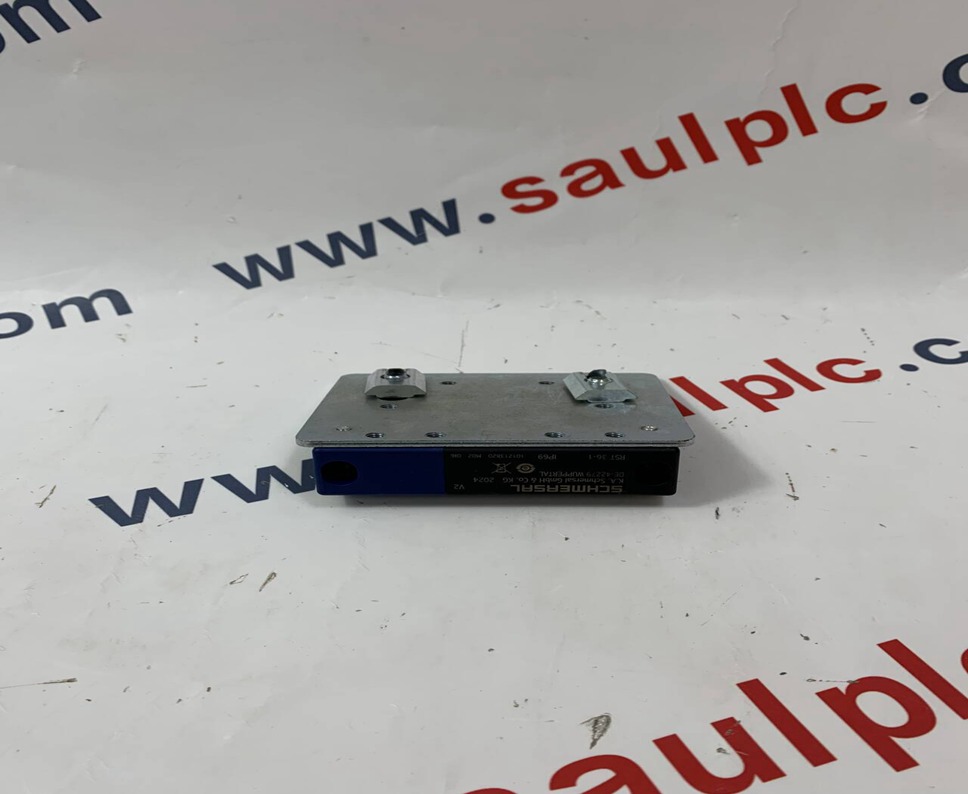

Schmersal RST36-1

The Schmersal RST 36-1 is an actuator designed to work in conjunction with the Schmersal RSS 36 electronic RFID safety sensor. It's a crucial component in machine guarding applications, ensuring safety by monitoring the position of movable safety guards like doors, gates, and covers.

Product Description

The RST 36-1 is a compact, robust actuator made of thermoplastic housing. It's designed for lateral actuation with the RSS 36 safety sensor. Its primary function is to provide the necessary coded signal to the RSS 36 sensor, which then monitors the safe position of guards. The RFID (Radio-Frequency Identification) technology integrated into this system enhances its tamper resistance, making it a reliable solution for various industrial environments.

Product Parameters

Here are the key specifications for the Schmersal RST 36-1 actuator:

• Type of Safety Switch Accessory: Actuator

• Compatibility: Designed for use with Schmersal RSS 36 safety sensors.

• Housing Material: Plastic (Thermoplastic)

• IP Rating: IP69 (meaning it's protected against dust and high-pressure, high-temperature jets of water, suitable for washdown applications).

• Operating Temperature: -25°C to 70°C (-13°F to 158°F)

• Body Dimensions (Approximate):

• Length: 22 mm

• Width: 91 mm

• Height: 25 mm

• Weight: Approximately 52g (or about 0.11 lbs)

• Actuation: Lateral active area

• Mounting: Simple and flexible mounting options, typically with 2 x M4 cylinder head screws.

• Manufacturer Part Number: RST 36-1 (Alternate Mfr Part Number: 101213820)

• Variants: There is also an RST 36-1-R variant which includes an internal magnetic latch.

Product Advantages

The Schmersal RST 36-1, when paired with the RSS 36 sensor, offers several significant advantages:

• High Safety Level: Achieves high safety requirements, up to PL e / control category 4 to ISO 13849-1, crucial for preventing accidents in industrial settings.

• Tamper Resistance: The integrated RFID data exchange provides excellent protection against manipulation and tampering, ensuring the integrity of safety circuits.

• Robust Construction: Made with durable thermoplastic material and boasting an IP69 rating, it's resistant to cleaning agents and suitable for harsh environments, including those requiring frequent washdowns.

• Flexible Mounting: Simple and flexible mounting options allow for easy integration into various machine designs and limited spaces.

• Lateral Actuation: Designed for side-positioned actuation, offering versatility in installation.

• Reliable Operation: High repeat accuracy of switching points ensures consistent and dependable safety monitoring.

• Compact Design: Its small dimensions (106.3 x 25 x 22 mm) enable installation in applications where space is at a premium.
