VOGEL DS-W1-4

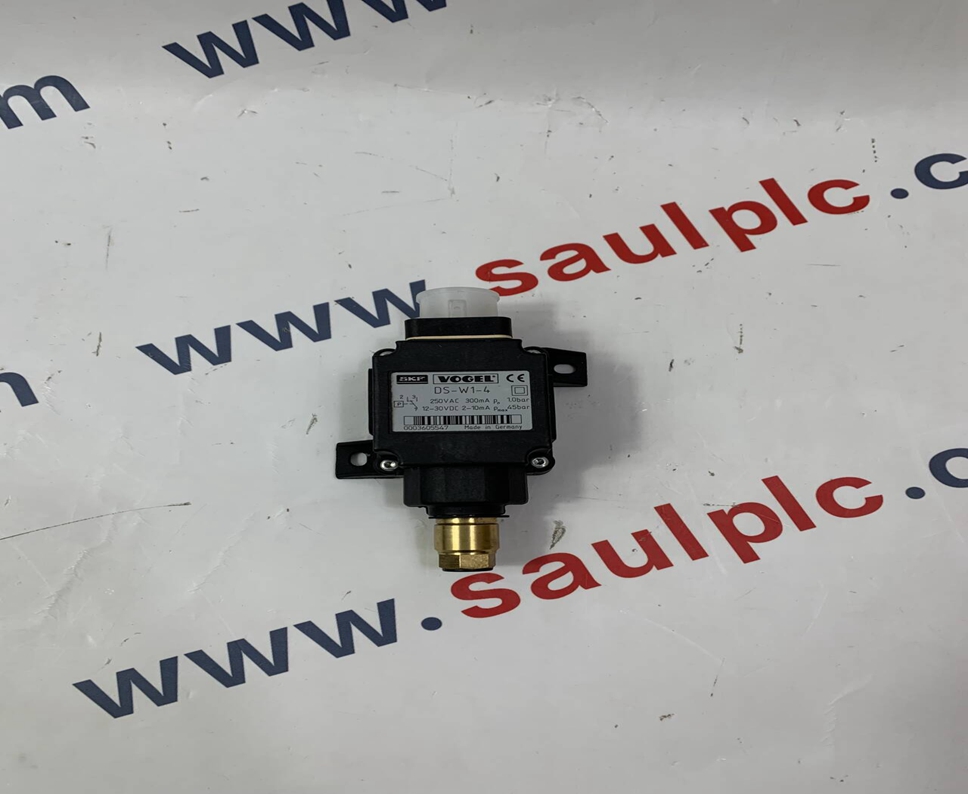

VOGEL DS-W1-4 Product Details

The VOGEL DS-W1-4 is a pressure switch designed for monitoring pressure in various applications, particularly within centralized lubrication systems. It plays a crucial role in ensuring the proper functioning of these systems by monitoring pressure build-up and release, the operation of directional control valves (in zoned systems), filter clogging, and potential leaks or air presence in the system.

This pressure switch features a non-adjustable switching pressure, which is factory set. It utilizes a changeover contact element housed in an airtight and distortion-resistant plastic casing that meets UL specifications. The switching action is triggered by a pin connected to a spring-loaded membrane when the set pressure is reached.

The DS-W1-4 is available with different plug versions for electrical connection. It's important to note that when switching off inductive loads, protective circuits like RC elements or varistors can be implemented to limit voltage spikes and extend the lifespan of the contacts. However, incorrect dimensioning of such circuits can be detrimental.

Product Parameters

While specific parameters for the DS-W1-4 may vary depending on the exact model and configuration, general parameters for the VOGEL DS-W series pressure switches include:

• Rated Switching Pressure: Typically available in ranges from 1 to 30 bar (non-adjustable, factory set).

• Permissible Operating Pressure: Up to 45 bar.

• Maximum Contact Load: 125 VA.

• Maximum Switching Voltage: 250 V AC / 30 V DC.

• Switching Current: 2 mA minimum / 300 mA maximum.

• Maximum Operating Temperature: +60 °C.

• Type of Contact: Changeover.

• Switching Rate: Maximum 30 cycles per minute.

• Mechanical Service Life: Up to 5 x 10^6 switching cycles.

• Type of Protection (with cable socket): IP 65.

• Housing Material: PBT+PC (UL 94 V0).

• Contact Material/Switch Element: AuAg25Pt6.

• Membrane Material: NBR.
