BIHL WIEDEMANN BWU2798 Product Details

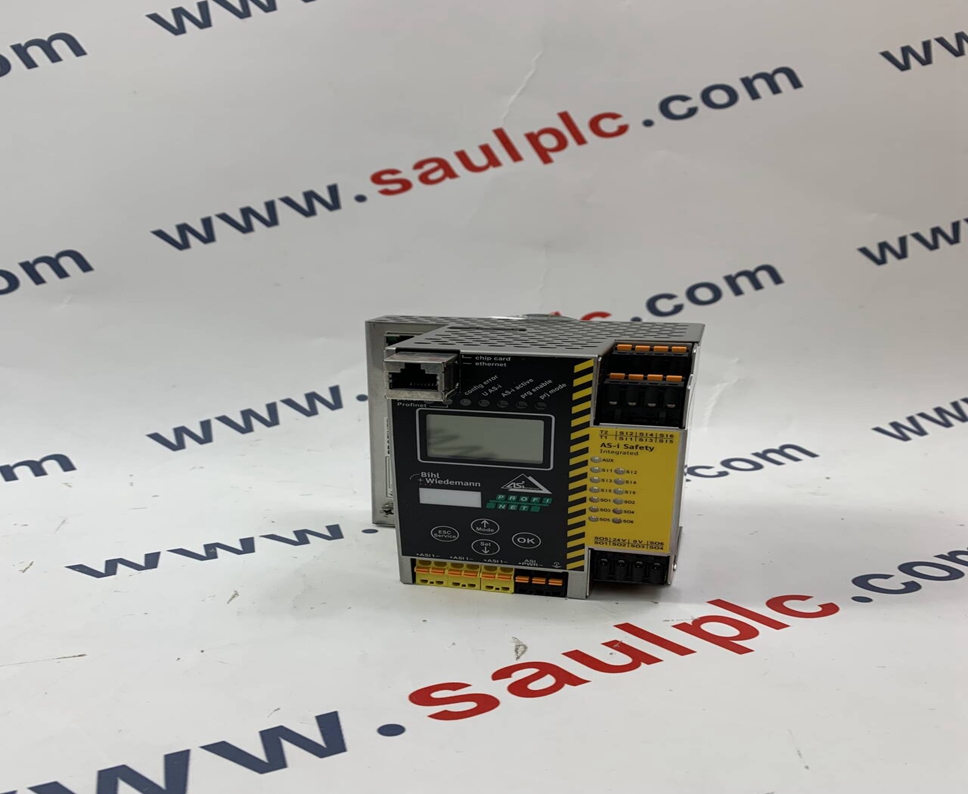

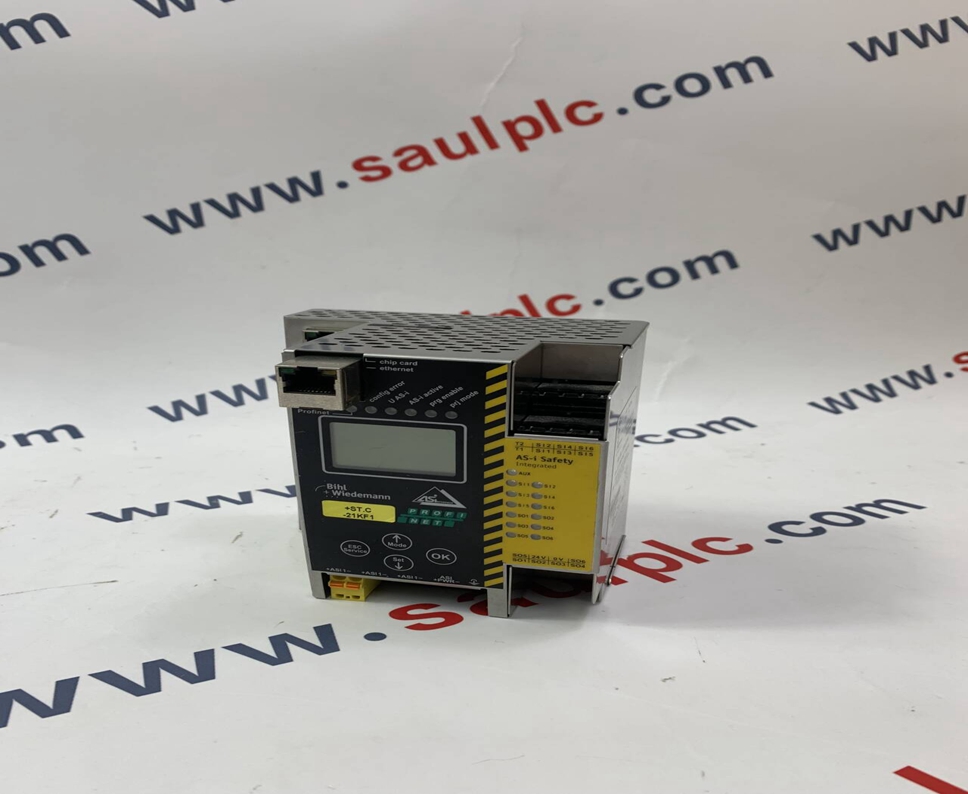

The BIHL WIEDEMANN BWU2798 is an ASi-3 PROFINET Gateway with an integrated Safety Monitor. It serves as a communication interface between an AS-Interface (ASi) network and a PROFINET network, while also providing safety functionalities.

Key Features:

• ASi Master: Integrates one ASi master, allowing connection to ASi slaves.

• Power Supply: Includes one power supply for two ASi networks, offering a cost-effective solution.

• Safety Inputs: Features 6 digital inputs configurable as 3 x 2-channel safe inputs (SIL 3, Cat. 4), expandable up to 31 x 2-channel safe inputs (1891 x 2 channels in maximum configuration).

• Safety Outputs: Equipped with 6 release circuits (6 x electronic safe outputs), expandable up to 31 safe outputs (991 safe outputs in maximum configuration).

• Safe Link: Supports Safe Link for secure safety communication.

• Diagnostics and Configuration: Offers diagnostic and configuration capabilities via PROFINET or an Ethernet diagnostic interface.

• Duplicate Address Recognition: Detects duplicate ASi addresses to prevent communication errors.

• ASi Fault Detector: Helps in identifying faults within the ASi network.

• Optional Programming: Allows optional programming in C.

• Protection Class: IP20 rated for control cabinet installation.

Product Parameters

• Product Type: ASi-3 PROFINET Gateway with integrated Safety Monitor

• Number of ASi Masters: 1

• Number of ASi Networks Supported: 2

• Standard Digital Inputs: 6

• Configurable Safe Inputs: 3 x 2-channel (expandable to 31 x 2-channel)

• Safe Outputs (Release Circuits): 6 x electronic (expandable to 31)

• Safety Standard: SIL 3, Category 4

• Safety Communication: Safe Link

• Fieldbus Interface: PROFINET

• Diagnostic Interface: PROFINET, Ethernet

• Power Supply: 1 for 2 ASi networks

• Protection Class: IP20

• Optional Features: Programming in C

• Operating Voltage: 30 VDC

Product Advantages

• Integrated Safety and Communication: Combines standard and safety communication in a single device, reducing hardware and wiring complexity.

• Cost-Effective: Single power supply for two ASi networks can lower overall system costs.

• Scalability: Expandable safe inputs and outputs provide flexibility for various application sizes.

• Advanced Diagnostics: PROFINET and Ethernet interfaces enable comprehensive diagnostics and configuration.

• Enhanced Safety: Supports high safety levels (SIL 3, Cat. 4) with Safe Link communication.

• Easy Troubleshooting: Duplicate address recognition and ASi fault detector simplify troubleshooting.
