SIEMENS 6EP1353-0AA00

SIEMENS 6EP1353-0AA00

Product information：

Brand：Siemens                              Model number：6EP1353-0AA00

Condition：new                              Warranty: 12 month

Lead Time：3-day working da        Country of origin: Germany

Price: Please contact us                   Product weight：0.04kg

HS: 8517623990

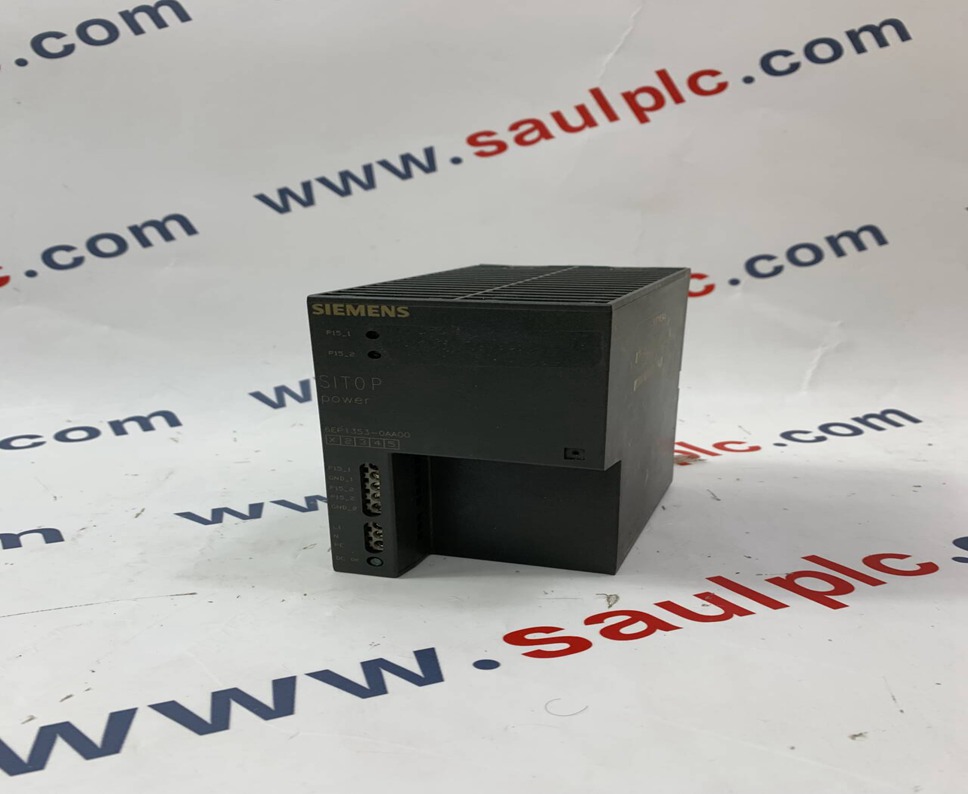

The Siemens 6EP1353-0AA00 is a SITOP dual output stabilized power supply, part of Siemens' SITOP Power series. It's designed to provide reliable DC power for various industrial automation applications.

It's important to note that this product is a spare part and has been discontinued by Siemens as of May 1, 2025. Its successor is the 6EP3323-0SA00-0BY0.

Product Details

The Siemens 6EP1353-0AA00 is a 1-phase stabilized power supply unit with two independent 15 V DC outputs. It's specifically designed for industrial environments, ensuring stable and reliable power delivery to sensitive components.

Product Parameters

Here are the key technical specifications for the Siemens 6EP1353-0AA00:

• Input:

• Voltage: 120-230 V AC (wide range: 93-264 V AC)

• Frequency: 50/60 Hz

• Input Current: 1.9 A at 120 V AC, 1.15 A at 230 V AC

• Phase: 1-phase

• Output:

• Voltage: 2 x 15 V DC (controlled, isolated DC voltage)

• Output Current: 2 x 3.5 A

• Total Output Power: 105 W

• Adjustable Output Voltage: Yes (via potentiometer, range: 14.5 - 17 V)

• Efficiency: Approximately 80%

• Residual Ripple: Max. 50 mV peak-to-peak (typical 20 mV)

• General:

• Dimensions (H x W x D): 125 mm x 75 mm x 125 mm

• Weight: Approx. 0.75 kg

• Operating Temperature: 0 to 60 °C (with derating above 45 °C)

• Protection Class: IP20

• Mounting Type: DIN rail (EN 60715 35x7.5/15)

• Connection Type: Screw terminals

• Approvals: UL (Canada and US), CSA C22.2, CE, RoHS Compliant

Product Advantages

• Stabilized Output: Provides a highly stable and regulated DC output voltage, crucial for protecting sensitive electronic components from voltage fluctuations.

• Dual Output: Offers two independent 15 V DC outputs, allowing for flexible power distribution to multiple loads.

• Wide Input Voltage Range: Can operate with a broad range of AC input voltages (93-264 V AC), making it adaptable to different power grids.

• Compact Design: Its compact form factor and DIN rail mounting make it suitable for installation in control cabinets with limited space.

• Reliability: As part of the Siemens SITOP series, it's built for industrial applications, known for their robustness and long service life.

• Adjustable Output Voltage: Allows for fine-tuning the output voltage within a specific range to meet the precise requirements of connected devices.
