WOODWARD 505D 8200-1302 Digital Governor Turbine


Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!

  We Can transport to the world!!!


WOODWARD 505D 8200-1302  In   Stock


Quantity available: 1

The colour:NEW、Used 、 refurbished

Warranty: 12 months.

Lead time: 1-2 working days.

Terms of payment: Paypal、T/T 、 Western Union.

Courier partners: DHL, UPS, TNT, FedEx and EMS.

Technical specification, manuals and data sheets

Product details:

The 8200-1302 is one of several Woodward 505 Digital Governors available for the control of steam turbines.  This operator control panel acts as a graphical interface and keypad that allows for adjustments to and communication with the turbine.  This can be configured through Modbus communication ports located on the unit.

The 8200-1302 has multiple features available, including
Auto start sequencing for hot and cold starts, with temperature input options
Critical speed avoidance on three-speed bands
Ten external alarm inputs
Ten external DI trip inputs
Trip indication for Trip and Alarm events with associated RTC time stamp
Dual Speed and Load Dynamics
Peak Speed Indication for Overspeed Trip
Zero Speed Detection
Remote droop
Frequency dead-band

The unit also offers three normal operating modes, including configuration, operation, and calibration modes.

The unit includes two redundant speed inputs that can accept magnetic pickup units, eddy current probes, or proximity probes. It has analog inputs (8) that can be configured for any of twenty-seven functions.   The unit also has an additional twenty contact inputs.  The first four of these contacts default for shutdown, raise speed setpoint, reset, and lower speed set point.  The others can be configured as needed.

Additionally, the unit has two 4-20 mA control outputs and eight form-C relay contact outputs.

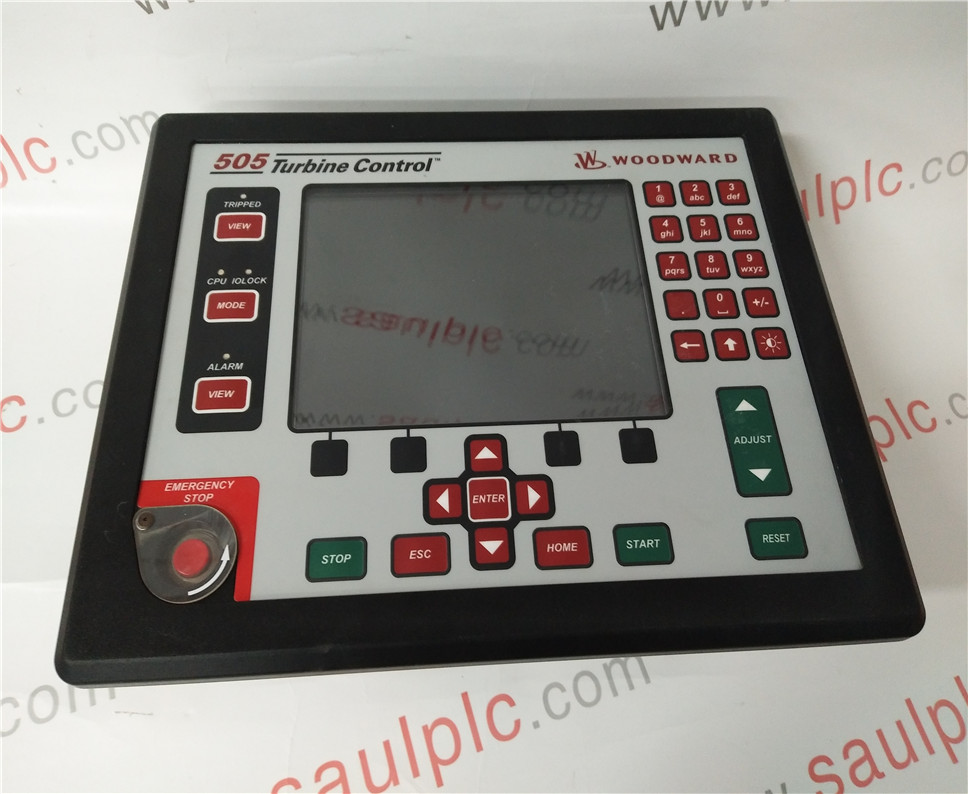

The 8200-1302’s front panel includes an emergency trip key, a backspace/delete key, a shift key, as well as view, mode, ESC, and home keys.  It also has navigation cross keys, soft key commands, and four LEDs to relate the status of control and hardware.

For additional information regarding the use and installation of the 8200-1302, please refer to original documentation from Woodward.
