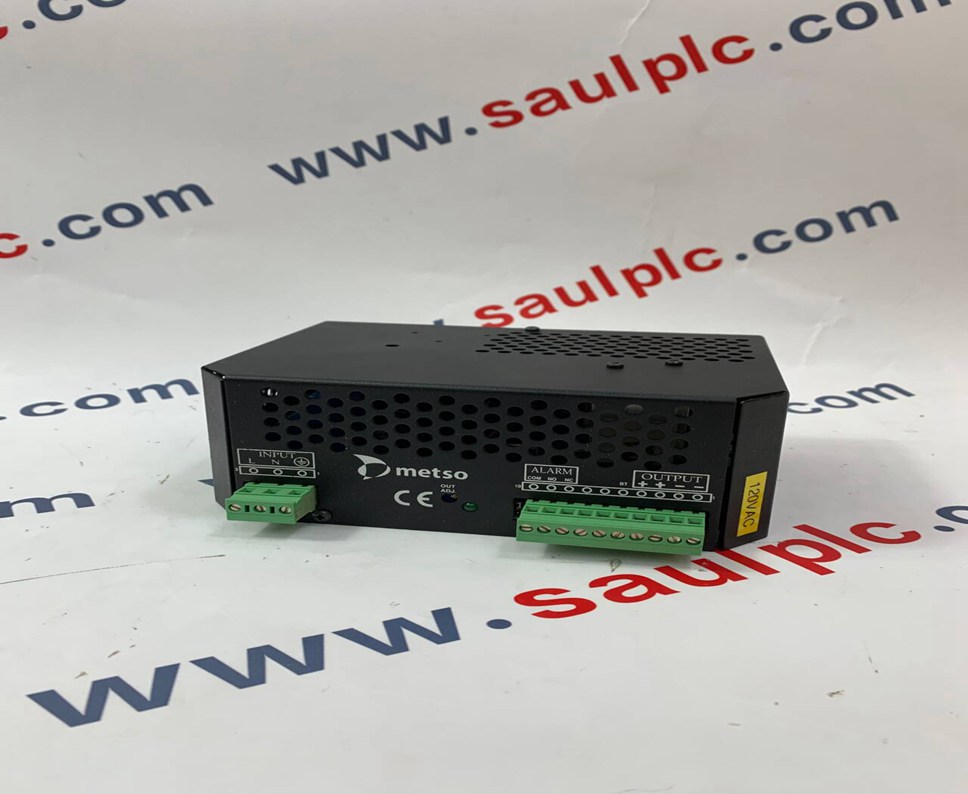

Metso ADC5483-D200418

The Metso ADC5483-D200418 is a power supply module commonly used in industrial automation and control systems. It is part of Metso's line of robust and reliable components designed for demanding industrial environments.

Product Description

The Metso ADC5483-D200418 is a power supply module that converts AC input voltage to a stable DC output voltage. It's specifically designed to provide reliable power to various industrial control devices, such as PLCs (Programmable Logic Controllers), sensors, and actuators. This module is built for durability and performance in harsh operating conditions, making it suitable for applications where consistent power is critical.

Product Parameters

Based on available information, here are the key specifications for the Metso ADC5483-D200418:

• Input Voltage: 115 / 230 Vac (selectable), 50/60Hz

• Input Current: 6.3 Amp (at 115/230Vac)

• Output Voltage: 28 Vdc

• Output Current: 9 Amp

• Efficiency: Typically 89% (at 230Vac, 100% load)

• Output Adjustment Range: 21-29 Vdc

• Ripple Voltage: <15mVrms

• Load Regulation: <0.5% (without series diode)

• Line Regulation: <0.15% Uinmin - Uinmax

• Temperature Coefficient: <0.02% / °C

• Current Limit: <11A

• Short Circuit Current: <14A

• Hold-up Time: >20ms (at 230Vac / 100% load)

• Operating Temperature: Typically -25°C to +70°C (with derating)

• Dimensions (Approximate): 7" x 5.5" x 3" or 75(W) x 173(H) x 122(D)mm

• Weight (Approximate): 1.3 kg (2.86 lbs)

• MTBF (Mean Time Between Failures): >3,000,000 hours (statistical)

• Isolation:

• Input/Ground: 1500Vac RMS 50Hz 1min

• Input/Output: 3000Vac RMS 50Hz 1min

• Output/Ground: 500Vdc

• Alarms and Indications: Output OK (Green LED), Power Fail Relay Alarm (24VDC/0.3A / 30Vac/0.5A NO/NC relay contacts)

• Enclosure: Steel / aluminum, IP20
